Product Details
＋

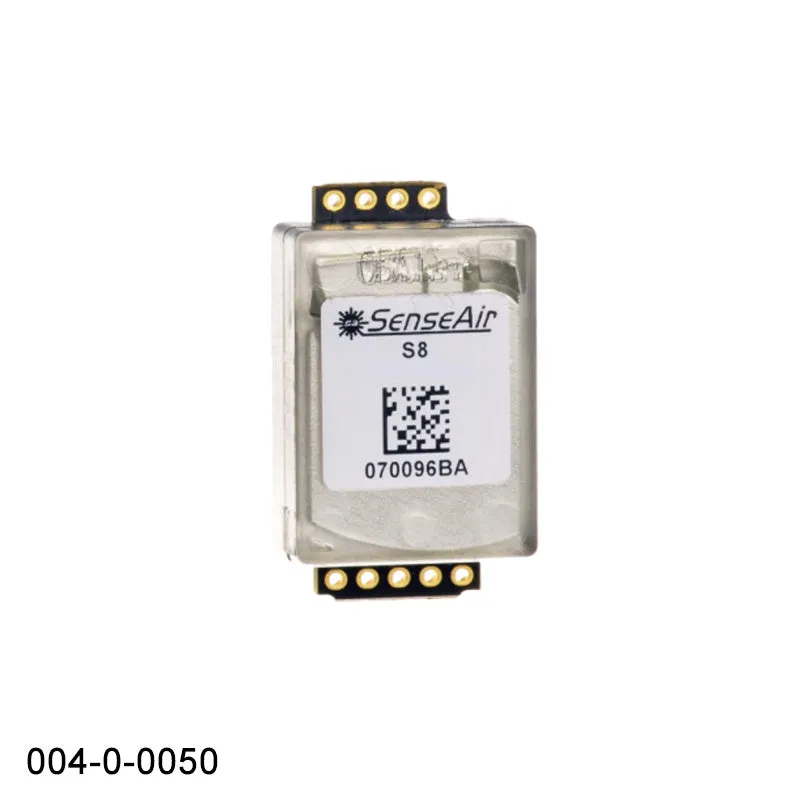

The Sensesair S8 2% CO2 Sensor (004-0-0050, was SE-0031) is designed to be used in control and alarm applications. This sensor can further be integrated into a wide range of applications including CO2 leak detection.
Features
- Miniature size
- Easy integration
- Individually calibrated
- Maintenance-free
- Long term stability
- Low power consumption
Models
- Senseair S8 2% CO2 Sensor (004-0-0050) - for high volume production with focus on control and alarm applications
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free to measure and graph carbon dioxide or use our to build your own application or for OEM batch testing/configuration. Order sensors on this page, then .
We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: diffusion
- Measurement Range: 0.04-2% vol
- CO2 Accuracy: ±200ppm ±3% of reading 1, 2
- Communication Options: UART (Modbus)
- Operating Temperature: 0 to 50°C
- Response Time: 2 minutes by 90%
- Dimensions: 8.5 x 33.5 x 20 mm
- Sensor Life Expectancy: > 15 years
Electrical / Mechanical
- Power Supply:4.5 V to 5.25VDC
- Max Current: 300 mA < 18mA average.
- Power Consumption: 300mA peak, 30mA average
Warranty
- 90 days - See
Accessories
- designed to provide customers with an easy drop-in solution. Includes our free . Sensor sold separately.
