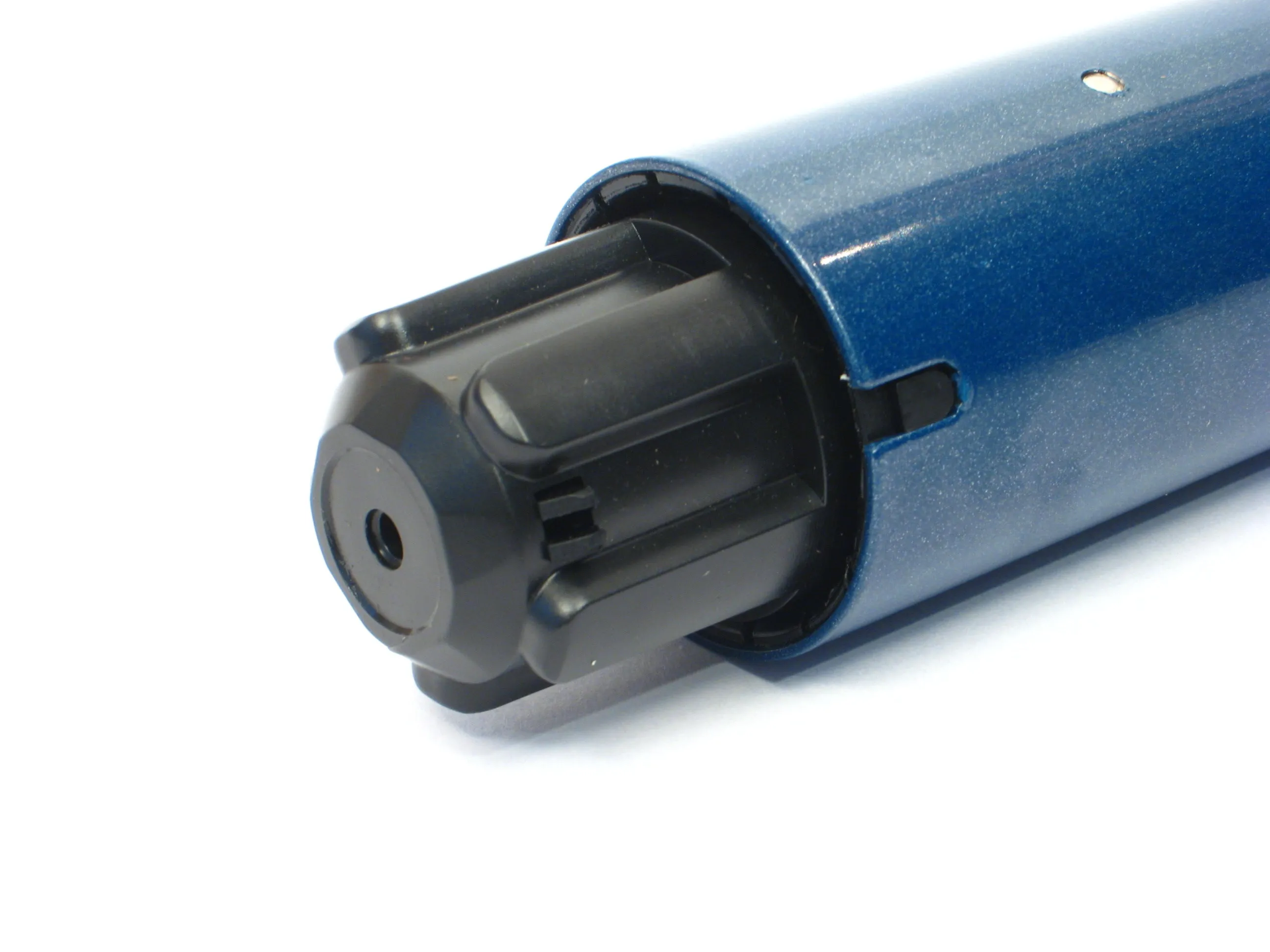

Motor with integrated radio control. A classic multi-purpose unit to motorize a host of products (roller shutters, awnings, vertical blinds, etc.) Up, down and stop functions, and can be pre-programmed with "my" favorite
future upgrade available with the use of the somfy wind/sun sensor.
Support
Technical Information
TECHNOLOGY
|
| Radio Frequency |
433.42 MHz |
| Capacity of memory |
12 different transmitters plus 3 wireless sensors |
| Coding |
Rolling code 16 million of possibilities |
ELECTRICAL
|
| Antenna |
Integrated |
| Consumption during operation |
240 W |
| Minimum voltage |
207 V |
| Maximum Voltage |
253 V |
| Rated current |
1.1 A |
| Nominal Voltage / Frequency |
230V AC 50Hz |
MECHANICAL
|
| Capacity of the limit switch unit |
250 turns |
| Type of limit switch unit |
Electronic |

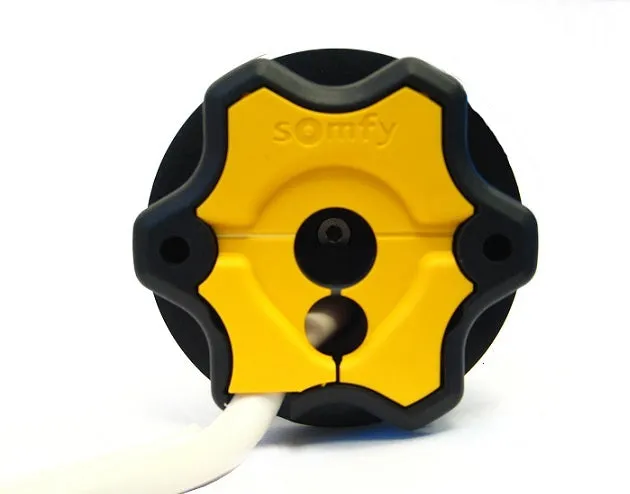

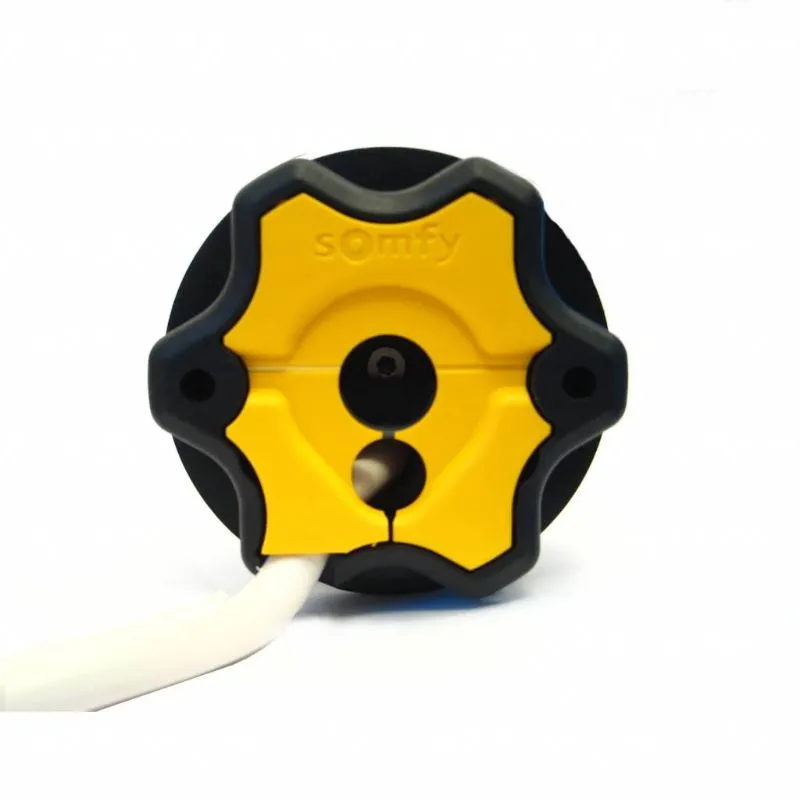

| Type of head |
Star |
| Nominal Speed |
12 rpm |
| Nominal Torque |
50 Nm |
| Repeatabilty |
° |
STANDARD
|
| Approval |
RCM |
| Protection Index |
IP44 |
| Insulation class |
Class I |
CABLE
|
| Plug in cable |
Grey LT plug |
| Cable type |
PVC |
| Wire section |
0,75 mm² |
| Color |
White |
| Wire Length |
3 m |
| Number of wires of the cable |
3 |
DIMENSION
|
| Length (L1) |
655 mm |
| Basic crown for tube diameter |
50 x 1,5 mm |
| Weight |
2.585 Kg |
| Overall length (L3) |
663 mm |
| Riveting position distance (L2) |
640 mm |
