Product Details
+

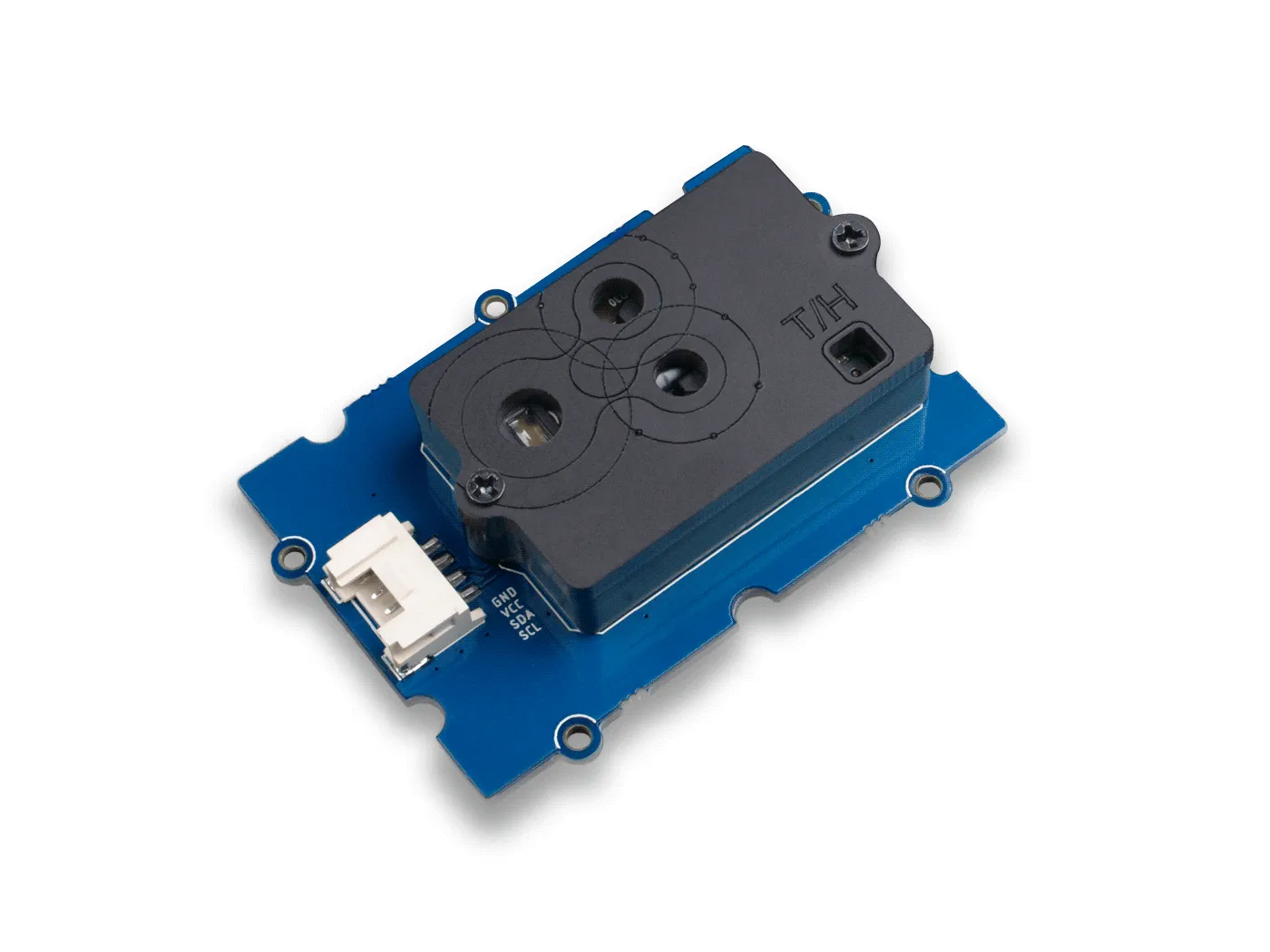

The Grove - CO2 & Temperature & Humidity Sensor (SCD30) is a high precision carbon dioxide sensor, which is based on Sensirion SCD30. The measuring range of this sensor is 0 ppm-40'000 ppm, and the measurement accuracy can reach to ±(30 ppm 3%) between 400ppm to 10'000ppm.
In addition to the measurement technology for CO2 detection, the SCD30 integrates Sensirion humidity and temperature sensors on the same sensor module.

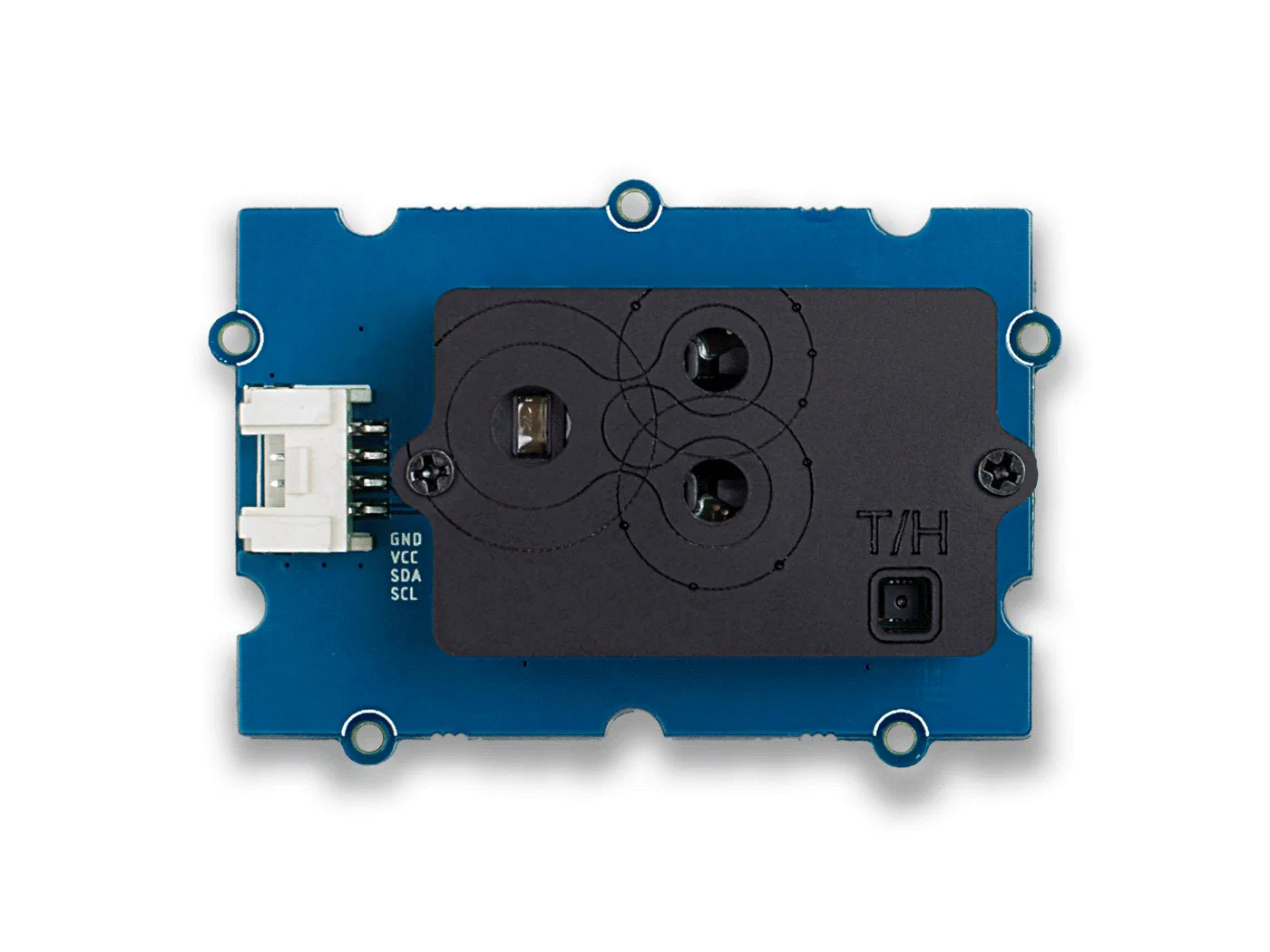

You can see that there is a monkey face graphic on the module, actually, this is a carbon dioxide molecular model. As you can see, the 4 valence electrons on each oxygen atom and also the covalent bonds between the carbon and oxygen atoms are clearly shown.
Here is a lewis structure of the CO2 molecule:
Tip
We've released the , it will help you choose the gas sensor that best suits your needs.
Features
-
NDIR CO2 sensor technology
-
Integrated temperature and humidity sensor
-
Best performance-to-price ratio
-
Dual-channel detection for superior stability
-
Digital interface I2C
Application Ideas
-
Air Purifier
-
Environmental Monitoring
-
Plant Environmental Monitoring
Pinout
ECCN/HTS
ECCN | EAR99 |
HSCODE | 9027100090 |
USHSCODE | 90230000 |
UPC |
