Product Details
＋
DESCRIPTION
Revised 2/24

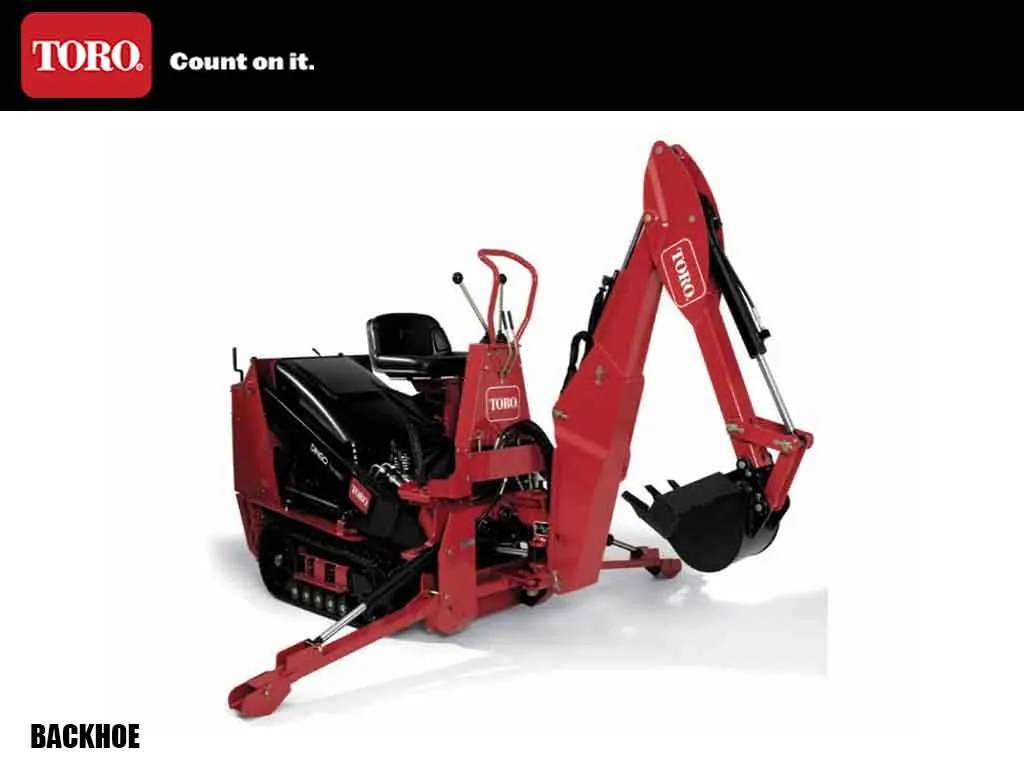

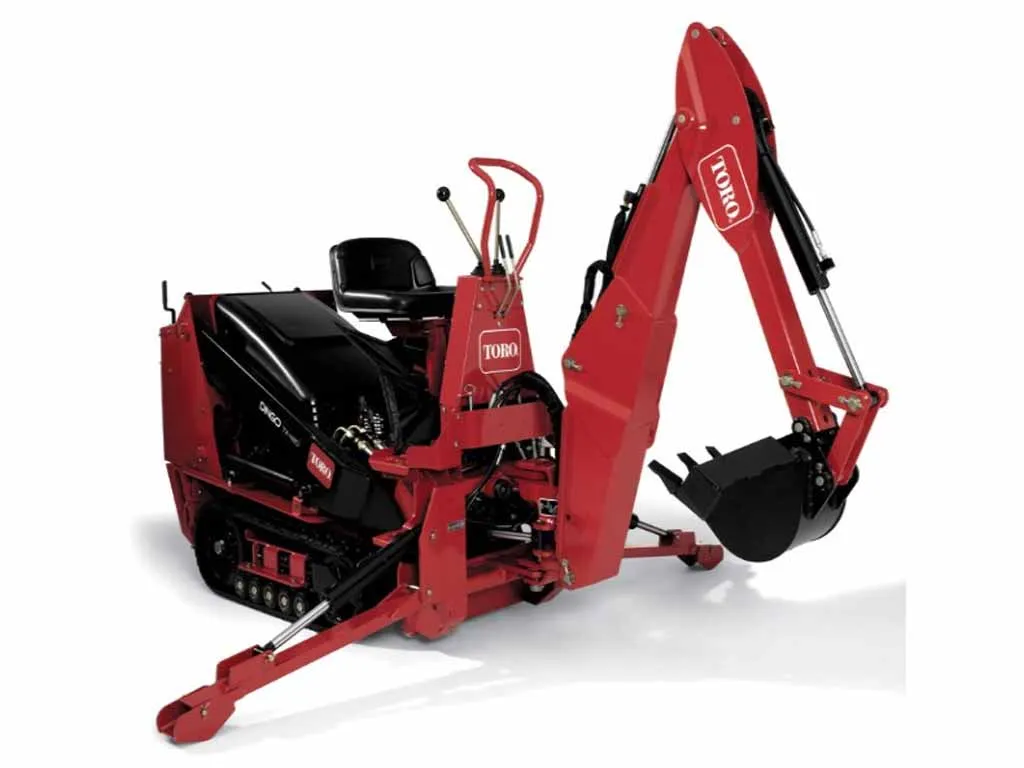

This powerful attachment can be used for various jobsite activities - digging foundations, planting trees, trenching for irrigation and utilities installation and much more.
FITS TX427 and TX525 ONLY-
Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
-
Hydraulic Stabilizers
Hydraulic fold-down stabilizers give excellent stability even in the tighest spaces!
-
Hydraulic Swing Pivot
Dual cylinders control the side to side swing pivot. This creates additional strength for back filling and provides smooth operation.
-
Ground Clearance
3" - Standard Equipment
Flush face Quick Couplers -
Bucket
13" - TX427 & TX525, 12" BUCKET - TX1000
-
Backhoe Fit-up Kit 23163
Allows the backhoe to fit either TX427 or TX525
SPECIFICATIONS
| WIDTH | 34.5" |
| LENGTH | 41" |
| HEIGHT | 71" |
| WEIGHT | 762 LB |
| MAX DIG DEPTH | 82" |
| BUCKET ROTATION | 180 |
| SWING ARC | 180 |
| STABILIZER SPREAD | 78" |
